K 1000 - A

K 1000 - A

The Fazzini sharpening machine model K1000-A has been constructed for the industrial sharpening of knives. Planned for continuous use , this machine is suitable for cutlery industries and for medium / big sharpening services.

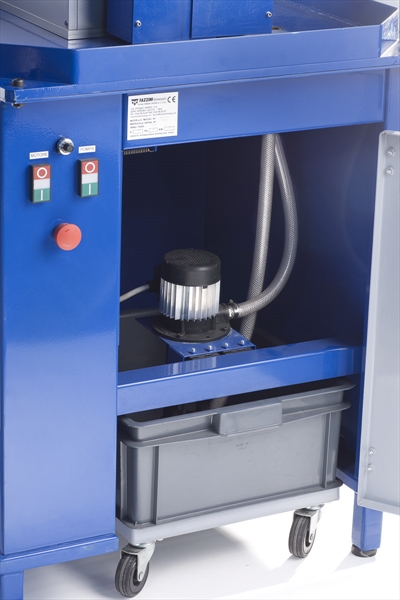

This professional sharpening machine consists of a painted steel basement containing the grinding cooling system and , separately, the electric installation.The machine structure is made of alluminium and painted steel.

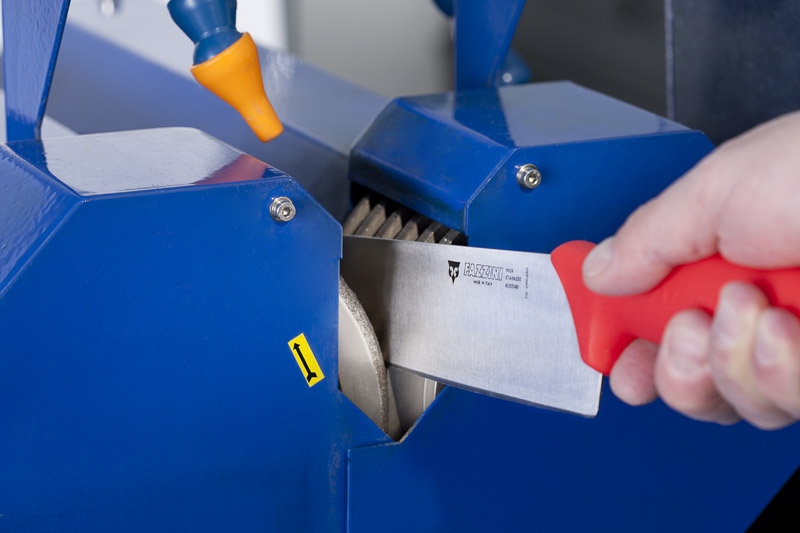

The sharpening worm wheels are penetrate one into the other and turn upwards opposing one another so as to be opposed to the cutting edge of the blade to be sharpened . The sharpening operation is obtained sliding the blade between the two wheels .

Maintenance is very simple, including the wheel change when the coating is completely worn out.

Characteristics:

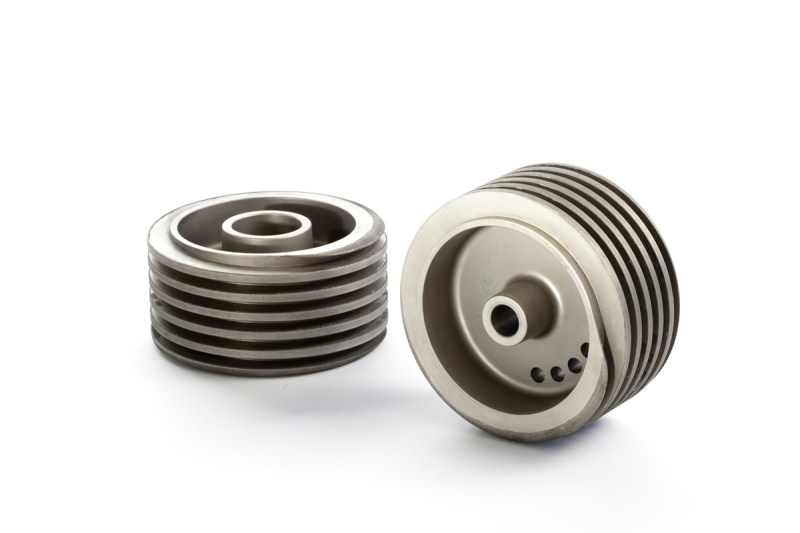

-  Worm wheels covered by CBN ( Cubic Boron Nitride )

-  Adjustable edge angle

-  Infinitely variabile wheels surface speed ( Inverter )

-  Dry or wet sharpening

Further info:

-  The machine can be adjusted to special customer’s requirements

-  Several grit sizes of the CBN are available

-  The used wheels can be recoated

  • Stampa
Models
Technical dataProfessional sharpener  K1000 - A
Motor 0,97 Kw
Motor pump 0,06 Kw
Voltage 380 V/4 poles/three-phase + neutral + earth
Diameter of the wheels 160 mm
Widh of the wheels 80 mm
Wheels surface speed Infinitely Variable (inverter)
Knife edge angle Adjustable da 0° a 50°
Weight 185 Kg
Dimensions (W x D x H) 690 x 660x 1500 mm
Accessories - Dust aspirator
Optionals - Ceramic coated sharpening steel


The machine can be adjusted to special customer's requirements .

Several grit sizes of the C.B.N. are available .

The used wheels can be re-coated .
