Small KS5

Small KS5

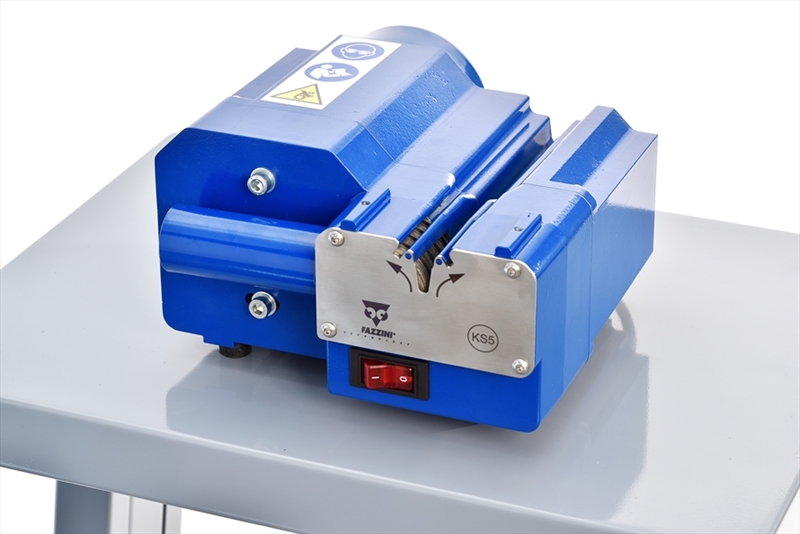

This professional sharpener has been designed to simply and effectively solve the problem of sharpening knives and scissors.  It consists of two painted cast aluminium  structures and stainless stell,   a back side structure containing the electric system and a front side structure containing the wheels .

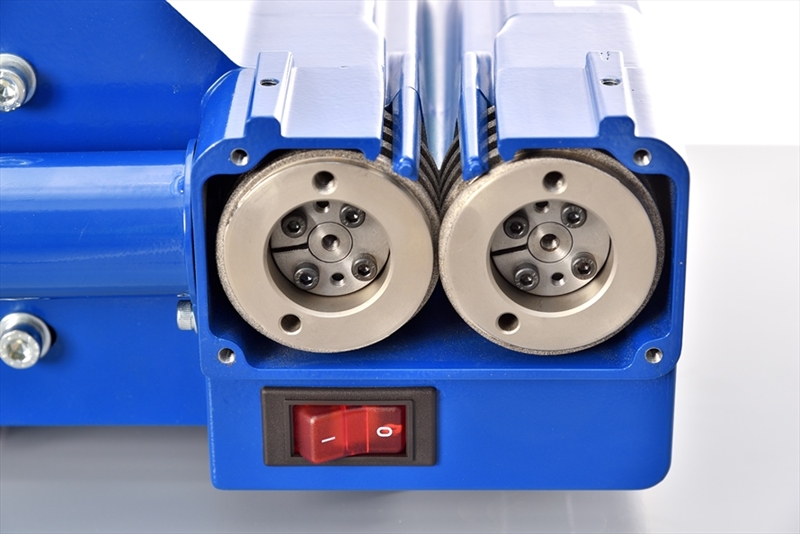

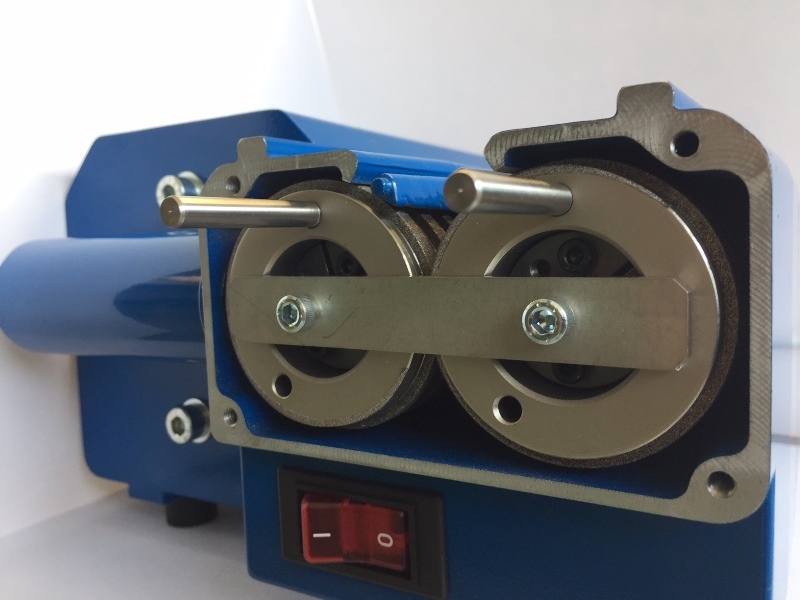

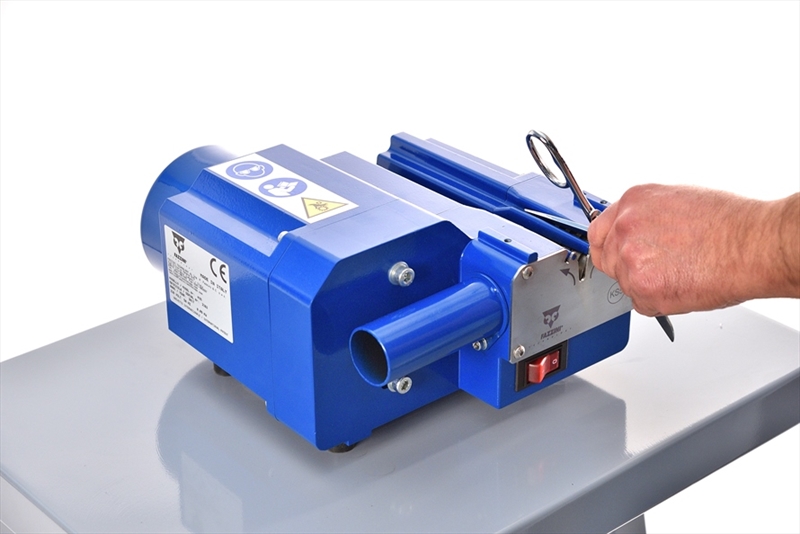

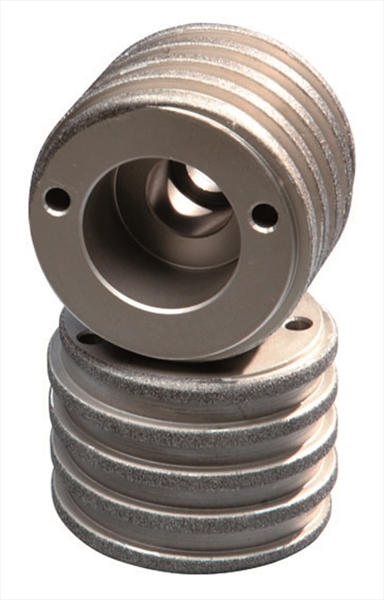

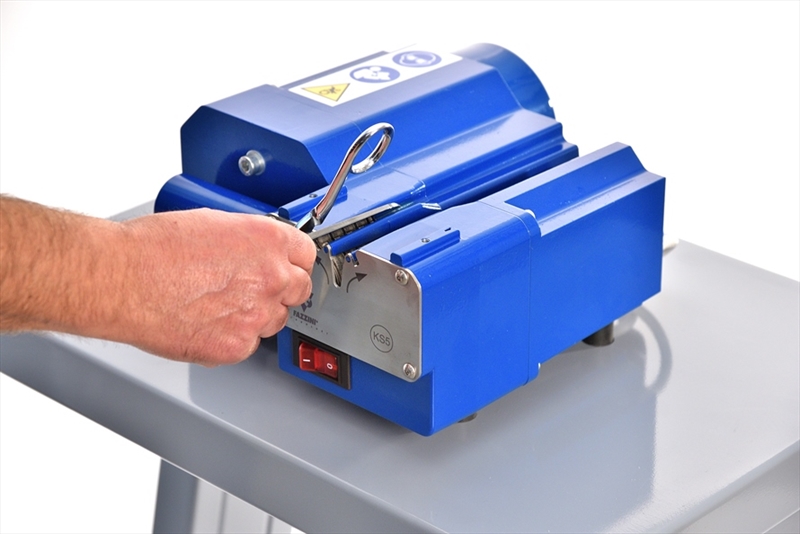

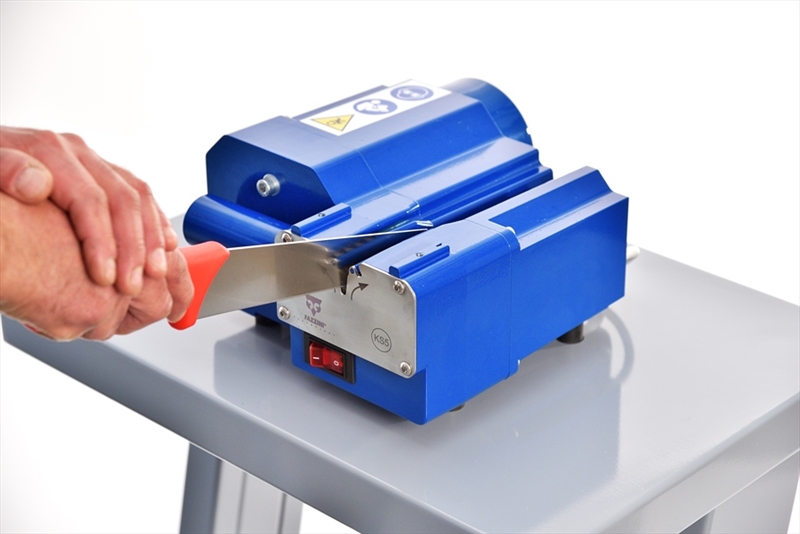

The Small sharpening machine model it is provided by two worm wheels made of C40 steel C.B.N. coated , balanced and fixed by keyless locking devices.  Long wheels life and minimisation of costs.  The knife sharpening wheels are penetrating and form a constant angle. The knife sharpening wheels turn upwards opposing each other so that they are opposed to the edge of the blade to be sharpened. Two openings are located on the left and right  side of the front structure for sharpening scissors . Left opening for sharpening right hand scissors , and right opening for sharpening left hand scissors. Every machine is equipped with a grinding wheels replacing kit with centering system . The wheels replacing is symple and fast.

A connection to insert the vacuum cleaner tube is mounted on the left side of the front structure.

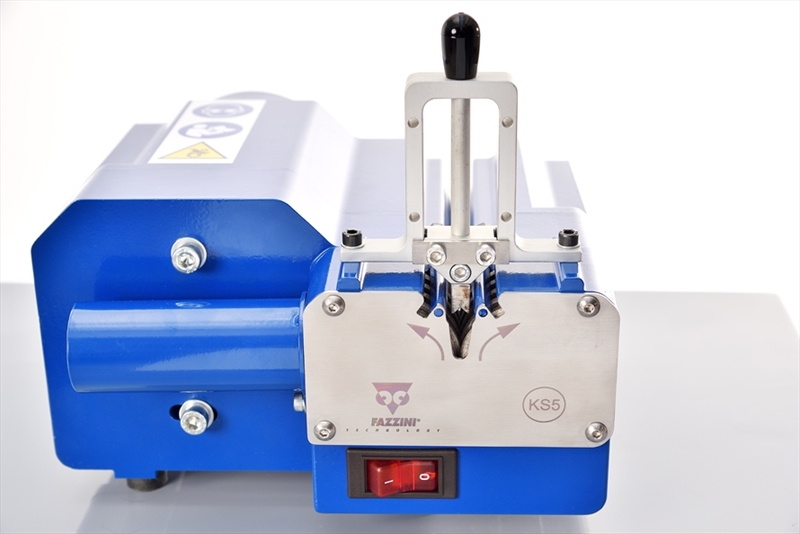

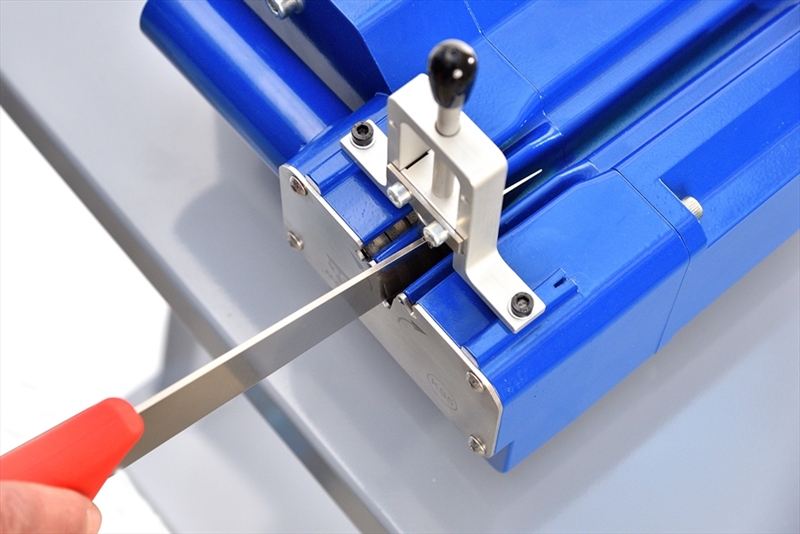

The machine can be provided by a system ( optional ) that allows to keep the blade of the knife in the right position during the sharpening operation ( Right Position System – R.P.S. ) . Symmetrical edge angle and high quality and improved  cutting life.

Maintenance is very simple, including the wheel change when the coating is completely worn out.

This NEW machine is suitable for  restaurants , butcher’s shops,  groceries , canteens, fishmongers, supermarket...and also for small sharpening services , small ironmongeries and other hobby shops .

Fazzini professional sharpening machines can be adapted to specific customer requirements. Our technical office studies and evaluates the modifications and supports necessary to sharpen special blades used in various sectors: food, textiles and cheese.

  • Stampa
Models
Technical data Professional Sharpening Small KS5
Knives sharpening *
Scissors sharpening *
Motor 0,09 Kw
Voltage 220 V monophase / 50Hz
Diameter of wheels of knives 60 mm
Knives adge angle 27°
Scissors aedge angle 80°
Weight 8,60 Kg**
Dimension (L x P x A) 255 x 285 x 152 mm***

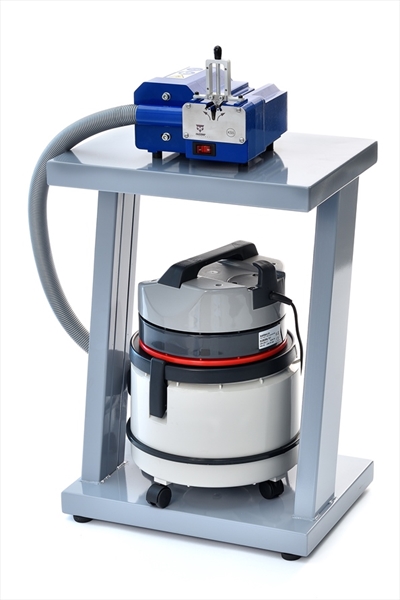

Accessories - Dust aspirator
- Machine bench made of Painted steel
Optionals - Right Position System ( R.P.S. )
- Ceramic coated sharpening steel


* Fazzini professional sharpening machine can be adjusted to special customer's requirements.

** With R. P. S. : + 0,2 Kg.

*** With R. P. S. : height from 240 mm -> 295 mm.
